Page 28 - EgeTorosDemirCelikKatalog-2
P. 28
PRIME PRE-PAINTED GALVALUME STEEL COILS,
EN10169-EN10143, AZ 30 GR, SKIN PASSED,
Ral 9002 and Ral 3009,
BORON ADDED MIN 0,0008
TOP COAT : 5 +20 (+-7) MIC
BACK COAT : 7 MIC (-2/+2)

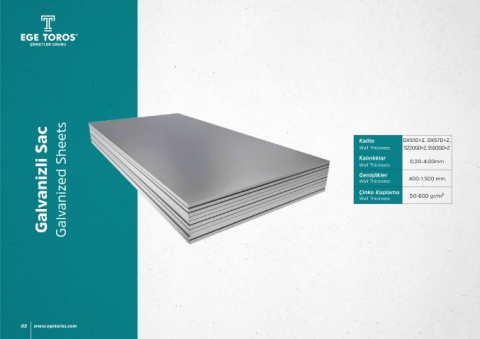

Galvanized Sheets
THICKNESS TOLERANCE : +0.00/-0.02
Galvanizli Sac
Coil Weight : 3-8mton
Kalite DX51D+Z, DX57D+Z,
Wall Thickness S220GD+Z, S550GD+Z Coil ID : 508 mm with cardboard core
(min 10mm)
Kalınlıklar 0,20-4.00mm
Wall Thickness
Kalınlıklar Genişlikler
Genişlikler Thicknes (mm) Width (mm)
Wall Thickness 400-1.500 mm Boyalı Galvanizli Sac Prime Painted And Galvanized Steel Coils
0.20 1030 - 1060
Çinko Kaplama
Wall Thickness 50-600 gr/m²
0.22 1030 - 1060
0.23 1030 - 1060
0.25 1030 - 1060
0.26 1030 - 1060
0.30 1030 - 1060
0.46 1000
